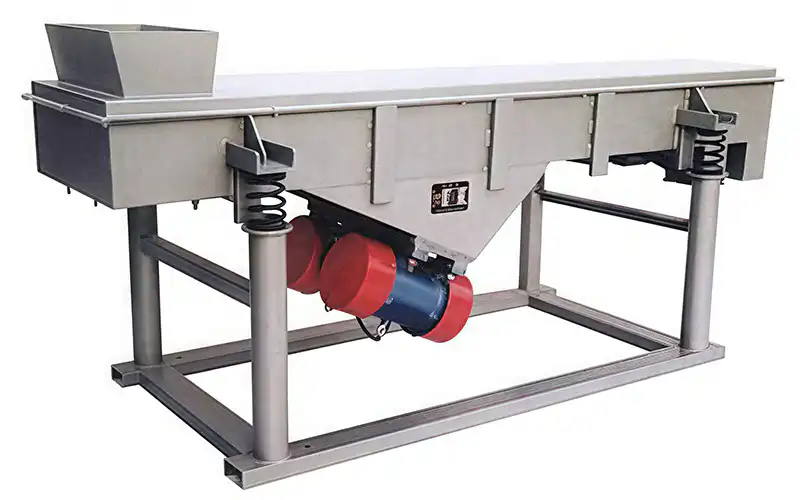

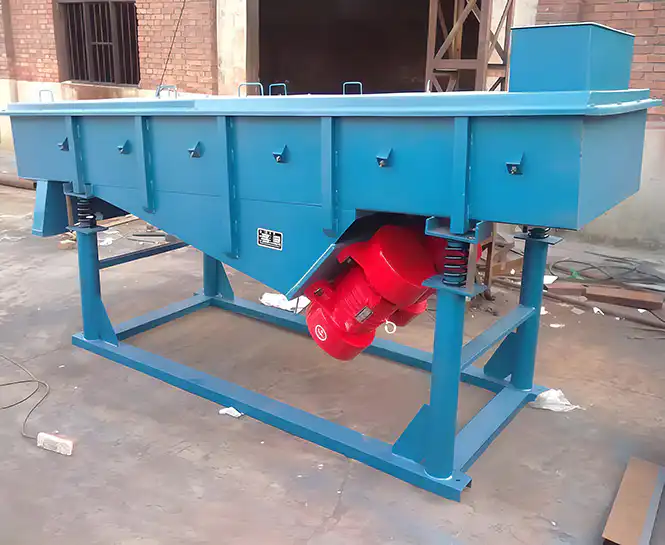

Linear vibrating screen
Shaking Table is one of the main equipments of gravity concentration. shaking table is not only widely applied to separating tungsten, the tin, the tantalum niobium and other rare metals and the noble metal ore.
It is also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The shaker’s effective recycling granularity scope is 2-0.22 millimetres.
Application of linear vibrating screen
It is suitable for any dry material screening from 0.74mm-5mm., the largest particle size is 10mm. It is widely used in chemical, food, plastics, pharmaceuticals, metallurgy, glass, building materials, food, fertilizers, abrasives, ceramics and other industries.
1)Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
2)Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
3)Food industry y: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
4)Paper-making industry: coated slurry, exhaust liquid, paper-making liquid and waste water reclamation, etc.
5)Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
6)Mechanical industry: casting sand, powder metallurgy, electromagnetic material metal powder, etc.
Linear vibrating screen features
1) Continuous production, single or multi-layer auto-classification filtering.
2) Good sealing performance, no dust overflow.
3) Energy-saving and low noise with a vibration motor.
4) Start fast and stop smoothly.
5) Simple installation, easy operation and maintenance.
6) High utilization rate of screen, large unit area, not easy to block, but easy replacement of screen.
7) High-precision screening reaches 96% or above, large processing capacity.
Linear vibrating screen working principle
Linear vibrating screen mainly consists of the eccentric block vibrator, screen box, motor, and supportive device. Through the flexible coupling, the motor drives the eccentric block of the vibrator at high rotary speed, generating the centrifugal force, and then lead the screen box to do circular movement by the amplitude. After that, the materials in the slope screen surface will be cast continuously by the force generated from the screen box, then realize the purpose of classifying.
Specifications of linear vibrating screen
Model | Sieve Size | Screen Surface layers | Mesh Size | سعة | Vibration Times | Double Amplitude | Motor Power | Vibration Direction Angle | Dimensions (L × W × H) |
DZSF520 | 1-6 | 2-200 | 0.05-5 | 960 | 6-7 | 2×0.4 | 45-60 | 2140×808×848 | |
2DZSF520 | 500×2000 | 1-6 | 2-200 | 0.05-5 | 960 | 6-7 | 2×0.4 | 45-60 | 2199×808×878 |
3DZSF520 | 500×2500 | 1-6 | 2-200 | 0.03-5 | 1450 | 4-6 | 2×0.4 | 45 | 2256×808×938 |
DZSF525 | 500×2500 | 1-6 | 2-200 | 0.06-8 | 960 | 5-7 | 2×0.4 | 45-60 | 2642×808×848 |
2DZSF525 | 500×2500 | 1-6 | 2-200 | 0.06-8 | 1450 | 4-6 | 2×0.4 | 45 | 2699×808×878 |
3DZSF525 | 500×2500 | 1-6 | 2-200 | 0.06-8 | 960 | 6-8 | 2×0.75 | 45-60 | 2750×808×938 |
4DZSF525 | 500×2500 | 1-6 | 2-200 | 0.1-15 | 1450 | 5-7 | 2×0.4 | 45 | 2813×808×1000 |
5DZSF525 | 500×2500 | 1-6 | 2-200 | 0.08-15 | 1450 | 5-7 | 2×0.4 | 45 | 2883×808×1060 |
6DZSF525 | 500×2500 | 1-6 | 2-200 | 0.07-15 | 960 | 6-8 | 2×0.75 | 45-60 | 2953×808×1120 |
DZSF1020 | 1000×2000 | 1 | 2-200 | 0.12-20 | 960 | 6-8 | 2×0.75 | 45-60 | 2152×1320×900 |
2DZSF1020 | 1000×2000 | 2 | 2-200 | 0.11-20 | 960 | 5-7 | 2×0.75 | 45-60 | 2219×1320×960 |
3DZSF1020 | 1000×2000 | 3 | 2-200 | 0.10-2 | 960 | 5-7 | 2×0.75 | 45-60 | 2286×1320×1030 |
4DZSF1020 | 1000×2000 | 4 | 2-200 | 0.07-15 | 960 | 4-8 | 2×0.75 | 45-60 | 2353×1320×1100 |
5DZSF1020 | 1000×2000 | 5 | 2-200 | 0.07-15 | 960 | 4-8 | 2×1.5 | 45-60 | 2420×1320×1160 |
6DZSF1020 | 1000×2000 | 6 | 2-200 | 0.07-15 | 960 | 4-8 | 2×1.5 | 45-60 | 2487×1320×1220 |
DZSF1025 | 1000×2500 | 1 | 2-200 | 0.1-15 | 1450 | 5-7 | 2×0.4 | 45 | 2203×1320×900 |
2DZSF1025 | 1000×2500 | 2 | 2-200 | 0.08-15 | 1450 | 5-7 | 2×0.4 | 45 | 2269×1320×960 |
3DZSF1025 | 1000×2500 | 3 | 2-200 | 0.07-15 | 960 | 6-8 | 2×0.75 | 45-60 | 2336×1320×1030 |
DZSF830 | 800×3000 | 1 | 2-200 | 0.1-20 | 960 | 6-8 | 2×0.75 | 45-60 | 3080×1098×1120 |
2DZSF830 | 800×3000 | 2 | 2-200 | 0.1-20 | 960 | 6-8 | 2×0.75 | 45-60 | 3140×1098×1180 |
3DZSF830 | 800×3000 | 3 | 2-200 | 0.1-20 | 960 | 6-8 | 2×1.5 | 45-60 | 3200×1098×1240 |
DZSF1030 | 1000×3000 | 1 | 2-200 | 0.1-20 | 960 | 6-8 | 2×0.75 | 45-60 | 3152×1340×1120 |
2DZSF1030 | 1000×3000 | 2 | 2-200 | 0.1-20 | 960 | 6-8 | 2×1.5 | 45-60 | 3219×1340×1120 |
3DZSF1030 | 1000×3000 | 3 | 2-200 | 0.1-20 | 960 | 6-8 | 2×1.5 | 45-60 | 3286×1340×1120 |
DZSF1224 | 1200×2400 | 1 | 2-200 | 0.1-23 | 960 | 6-8 | 2×0.75 | 45-60 | 2480×1520×1100 |
2DZSF1224 | 1200×2400 | 2 | 2-200 | 0.1-23 | 960 | 6-8 | 2×0.75 | 45-60 | 2540×1520×1160 |
3DZSF1224 | 1200×2400 | 3 | 2-200 | 0.1-23 | 960 | 6-8 | 2×1.5 | 45-60 | 2600×1520×1220 |
