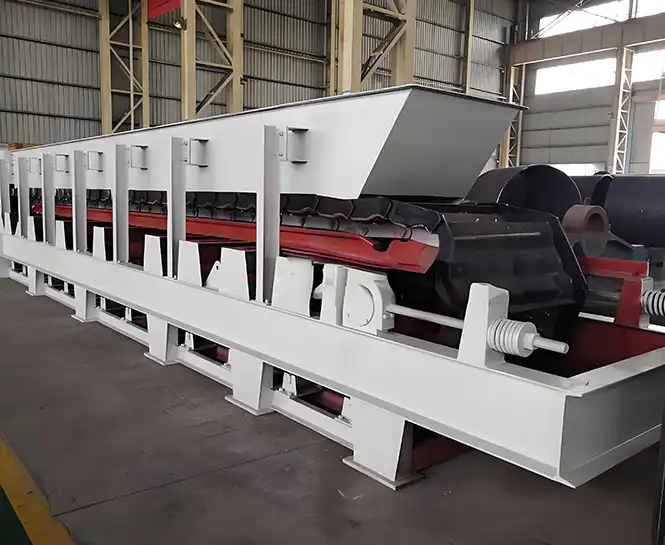

Apron feeder
Apron feeder also known as plate feeder, mainly used to continuously and uniformly supply and transfer various large heavy stones and ore to crushers, It is one of the important and indispensable equipment in the process of ore and raw material processing and continuous production.
Feeding size: 160-700mm
Production capacity: 20-500t/h
Applicable materials: Bulk materials with bulk density not greater than 1.2t/m3, block weight not greater than 140kg, and temperature not greater than 350℃.
The apron feeder can be used for continuous and uniform feeding of the primary crusher in the crushing and grading workshop in large scale ore beneficiation plant, cement, building materials and other departments.
It has the advantages of large traction, less material leakage, stable operation, long service life and convenient maintenance.

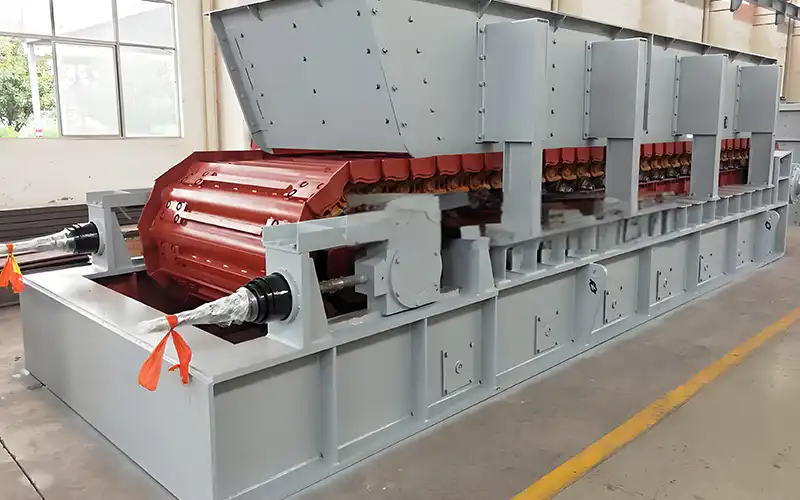

Apron feeder advantages
01. Advanced structure and well-made
The apron feeder has an advanced structure and adopts a new technological concept to make the production process. Especially for the accessories of the equipment, the wear resistance is increased, not only using high wear resistance materials, but also undergoing a heat treatment process.
02. High degree of automation
It has advantages in equipment accessories driving device, feeding structure, bearing guide rail and tray, trough wear resistance, automatic control technology, etc. At the same time, it can complete the automatic design, manufacturing and installation of the feeding system.
03. Reliable quality
The traction chain and the load chain are separated, the dynamic load is small, and the service life is improved. Excellent material selection, reliable quality and good interchangeability.
04. Low failure rate
The tail device of the apron feeder adopts a special design, which is suitable for rainy and humid areas, and will not cause the chain to jump teeth due to the accumulation of sticky materials at the tail, which affects production.

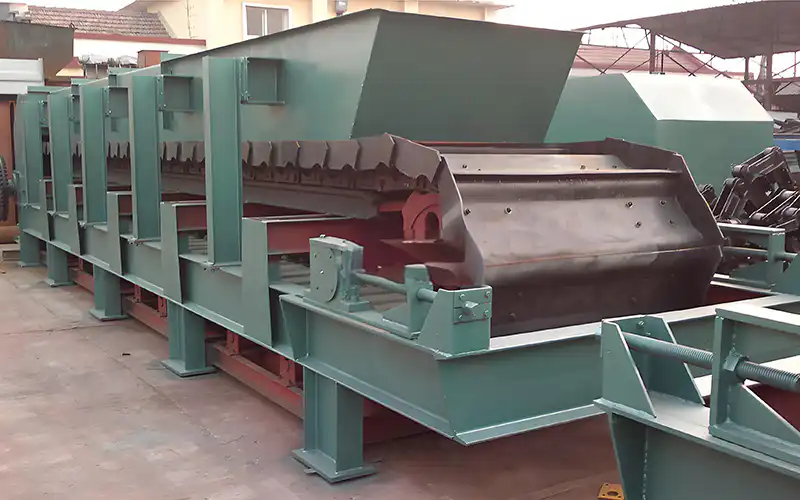

Apron feeder working principle
The apron feeder is driven by a motor and a speed reducer to rotate the head sprocket with a cogging structure so that the traction chain meshed with the sprocket will pull the conveying trough containing the material to move forward.
Carrying mechanism-the traction chain runs on the supporting wheels, and the supporting wheels support the conveying trough and bear the weight of the material and the running components.
The material is pushed down from the storage bin above the tail to the conveying trough and then moves forward with the conveying trough to the chute of the head cover to be discharged.
Specifications of apron feeder
| Model | Slot width (mm) | Head and tail axle(mm) | Speed (m/s) | Feeding size (mm) | Processing capacity(t/h) | Motor power(kw) | Dimensions (mm) | Weight(t) |
| XBW100 | 1000 | 6000 | 0.01-0.1 | ≤500 | 80-160 | 11 | 86200×4960×1600 | 15 |
| XBW120 | 1200 | 11000 | 0.01-0.1 | ≤600 | 50-100 | 15 | 11463×5029×2860 | 23.5 |
| XBW125 | 1250 | 6000 | 0.014-0.8 | ≤800 | 45-150 | 11 | 8620×5240×1950 | 18.9 |
| XBW140 | 1400 | 16000 | 0.006-0.06 | ≤900 | 20-200 | 22 | 18310×6447×2030 | 45.9 |
| XBW150 | 1500 | 10500 | 0.006-0.06 | ≤700 | 61-610 | 22 | 12850×5595×1705 | 49.4 |
| XBW160 | 1600 | 6000 | 0.017-0.17 | ≤800 | ≤500 | 22 | 8354×6099×2100 | 25.5 |
| XBZ160 | 1600 | 9000 | 0.01-0.07 | ≤1000 | ≤500 | 30 | 11250×4153×2890 | 50 |
| XBZ180 | 1800 | 8000 | 0.01-0.07 | ≤1000 | ≤500 | 37 | 10250×4353×2890 | 59 |
| XBZ200 | 2000 | 9800 | 0.01-0.07 | ≤1000 | ≤700 | 45 | 12000×4553×2890 | 82 |
| XBZ220 | 2200 | 10000 | 0.01-0.07 | ≤1200 | ≤800 | 45 | 12000×4753×2890 | 85 |
| XBZ230 | 2300 | 10000 | 0.01-0.07 | ≤1500 | ≤850 | 55 | 12000×4853×2890 | 86 |
| XBZ240 | 2400 | 10000 | 0.02-0.06 | ≤1600 | 550-900 | 2×37 | 12000×4953×2890 | 95 |
| XBZ250 | 2500 | 11460 | 0.01-0.07 | ≤1800 | 100-1000 | 2×45 | 12000×5053×2890 | 105 |
| XBW180 | 1800 | 8000 | 0.022-0.046 | ≤800 | 30-320 | 37 | 10300×4295×3650 | 53 |
| XBW220 | 2200 | 10000 | 0.018-0.055 | ≤1500 | 220-680 | 45 | 12650×4495×3350 | 80.4 |
