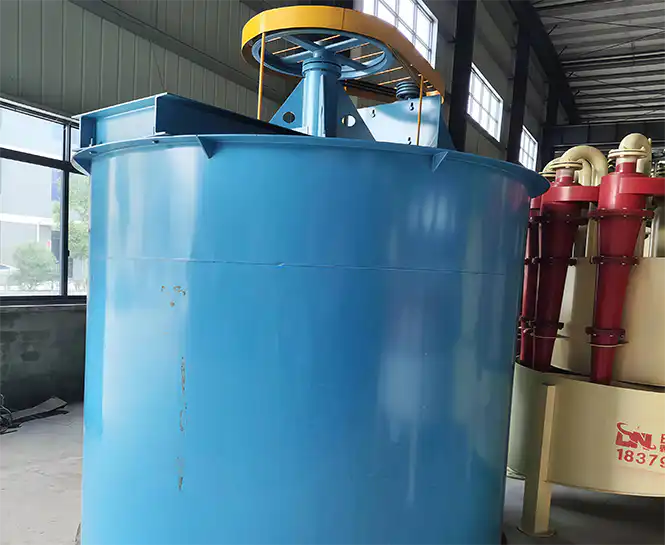

Leaching tank
Processing capacity: 6-395 m³
Application range: The double impeller leaching tank is suitable for gold leaching, adsorption and other mixing operations where the specific gravity is small, the viscosity is low, the settling speed is slow, the ore particle size is -200 mesh accounting for more than 90%, and the slurry concentration is less than 45%.
Product improvement: Double-layer impeller, uniform mixing, low energy consumption; impeller encapsulated, long service life; multi-point air supply, uniform inflation.
Leaching tank features
The ore flow moves smoothly, the ore slurry is evenly mixed, and the power consumption is low.
The air enters the groove through the hollow shaft of the transmission and is agitated by the blades, and the air is evenly dispersed.
Compact structure and convenient maintenance.
The hollow shaft is ventilated to the bottom end, and the air enters the groove through it, disperses evenly, and has small bubbles.
Two new impellers are used, the impeller diameter of the mixing tank is large, the rotation speed is low, and the mixing power consumption is small, which can reduce the abrasion of the carbon.
The mixing intensity is moderate, and the slurry concentration and fineness distribution in the tank are consistent, which can improve the leaching rate of cyanide and the adsorption rate of carbon.
The impeller of the leaching tank is lined with wear-resistant rubber, which has a low speed and a long service life.
Leaching tank working principle
The leaching tank is dragged and stirred by the double impeller, flows from top to bottom in the center, diffuses through the surrounding damping plate, and feeds air at the lower end of the shaft, mixes with the slurry and circulates upwards to form Homogeneous suspension mixture.
Specifications of leaching tank
| Model | Tank Spec. (DX H) (mm) | Effective Volume (m3) | Rotating Speed of Impeller (r/min) | Diameter of Impeller (mm) | Motor Model | Motor Power (kW) | Reducer Model | Tank Weight (kg) | Total Weight (kg) |
| SJ2.0X2.5 | 2000X2500 | 7.07 | 52 | 909 | Y100L1-4 | 2.2 | XLD2.2-4-29 | 1609 | 2144 |
| SJ2.5X2.5 | 2500X2500 | 10.8 | 43 | 935 | Y112M-4 | 4 | XLD4-5-35 | 2159 | 2729 |
| SJ2.5X3.15 | 2500X3150 | 13.92 | 52 | 935 | Y100L1-4 | 2.2 | XLD2.2-4-29 | 2398 | 3095 |
| SJ3.0X3.0 | 3000X3000 | 19 | 43 | 1130 | Y112M-4 | 4 | XLD4-5-35 | 3480 | 4583 |
| SJ3X3.15 | 3000X3150 | 20 | 43 | 1130 | Y112M-4 | 4 | XLD4-5-35 | 3480 | 4160.6 |
| SJ3X3.5 | 3000X3500 | 22.97 | 43 | 1130 | Y112M-4 | 4 | XLD4-5-35 | 3211 | 4334.6 |
| SJ3.15X3.55 | 3150X3550 | 25.73 | 43 | 1260 | Y112M-4 | 4 | XLD4-5-35 | 3433.5 | 4322.8 |
| SJ3.5X3.5 | 3500X3500 | 31.3 | 52 | 1310 | Y132S-41310 | 5.5 | XLD5.5-5-29 | 3480 | 5025 |
| SJ3.5X4 | 3500X4000 | 35.6 | 52 | 1310 | Y132S-41310 | 5.5 | XLD5.5-5-29 | 4230 | 5429 |
| SJ3.55X4.0 | 3550X4000 | 36.8 | 43 | 1310 | Y132S-41310 | 4 | XLD4-5-35 | 4260 | 5025 |
| SJ3.7X4.2 | 3700X4200 | 42 | 42 | 1310 | Y112M-4 | 4 | XLD4-5-43 | 5266 | 6153 |
| SJ4.0X4.5 | 4000 X4500 | 52.78 | 35 | 1750 | Y132M-4 | 7.5 | XLD7.5-7-43 | 6397 | 7569 |
| SJ4.0X6 | 4000 X6000 | 71 | 33 | 1750 | Y160M-4 | 11 | GRF137-Y11-4P-44.65-M4 | 7681 | 9200 |
| SJ4.5X5.0 | 4500 X5000 | 74.75 | 35 | 1750 | Y132M-4 | 7.5 | XLD7.5-7-43 | 8614 | 10864 |
| SJ5.0X5.6 | 5000X5600 | 104.5 | 31 | 2046 | Y160M-4 | 11 | XLD11-8-47 | 8740 | 14291 |
| SJ5.5X6.0 | 5500X6000 | 135.42 | 31 | 2100 | Y160M-4 | 11 | XLD11-8-47 | 12467 | 18745 |
| SJ6.5X7.0 | 6500X7000 | 215 | 21 | 2400 | Y180L-4 | 22 | GRF147-Y22-4P-70.87 | 17890 | 25978 |
| SJ7.0X7.5 | 7000 X7500 | 269 | 21 | 2400 | Y200L2-6 | 22 | XLD22-10-47 | 20505 | 29030 |
| SJ7.5X8.0 | 7500 X8000 | 331 | 23 | 2900 | Y200L2-6 | 22 | BLD7-43-22L | 22552 | 32796 |
| SJ8.0X8.5 | 8000X8500 | 402 | 18.5 | 3300 | Y250M-8 | 30 | TPS315-3F | 30559.5 | 42467.3 |
| SJ8.5X9.0 | 8500X9000 | 480 | 18.5 | 3300 | Y250M-8 | 30 | TPS315-3F | 34130 | 46623 |
