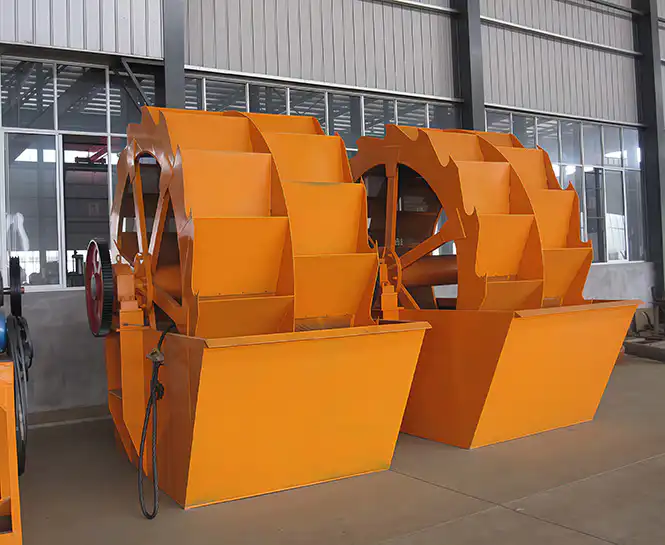

Bucket wheel sand washing machine
A bucket Wheel Sand washing machine is used to remove the dust in sand. Bucket Wheel Sand washing machine is widely used for cleaning materials in the following industries: quarry, minerals, building materials, transportation, chemical industry, water conservancy and hydropower, and cement mixture station.it is mainly used for washing, selecting dewatering construction materials and sand materials.
Wheel bucket sand washer is one kind of sand washing machine working together with sand making machine, it can clean and separate dust from sand. It’s new seal structure and the reliable driving device can make sure the cleaning is effective. Bucket sand washer is mainly used in building sites, gravel plants, concrete dam building sites hydropower stations, etc.
Max feed size (mm): 10
Capacity: 20-150t/h
Bucket wheel sand washing machine characteristic
1. Simple structure;
2. The bearing device of the impeller drive is separated from water and 1 material with water, to avoid damage to the bearing;
3. New sealing structure and reliable transmission device;
4 . Reasonable structure;
5. High capacity, low power consumption;
6. Easy structure, and stable operation.

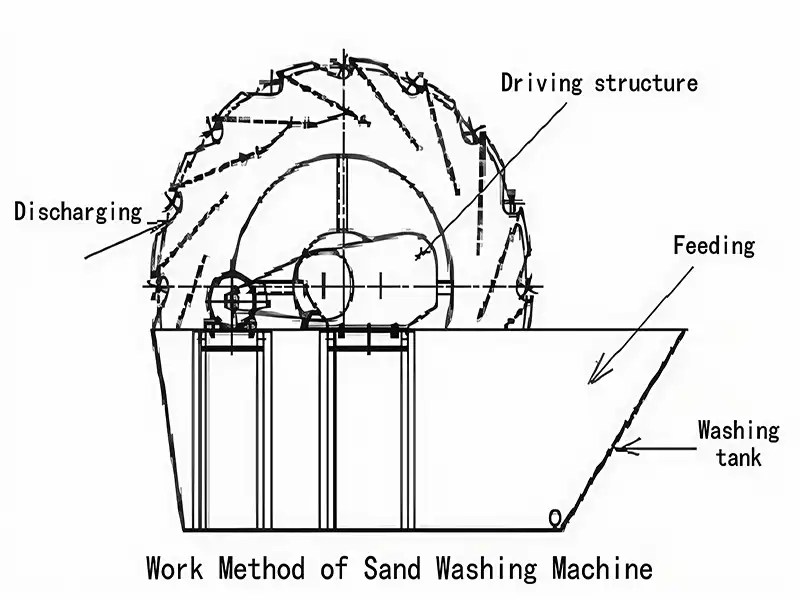

Bucket wheel sand washing machine working principle
When the machine works, the motor drives the impeller to run slowly after being decelerated by the v-belt, reducer and gear; Sand enters the wash trough through the feeding tank, rolls pushed by the impeller, and rubs mutually to remove the impurities covering the surface of the sand, it breaks the water vapour which favours dewatering.
At the same time, the strong water flow takes the impurities away and discharges from the overall. The clean sand is taken away by the impellers, and when rising, the water drops down to the wash-through from the nets, this can both dewater the sand and save waste; Finally, the sand is poured into the discharge chute and finished cleaning.
Specifications of bucket wheel sand washing machine
| Model | Wheel Size (mm) | Max Feed Size (mm) | Power (KW/HP) | Weight (t) | Capacity (t/h) | Overall Dimension (mm) |
| XSD2610 | Φ2600×1000 | 10 | 5.5/7.5 | 2.6 | 20-50 | 3255×1982×2690 |
| XSD2816 | Φ2800×1600 | 10 | 11/15 | 4.2 | 30-60 | 3540×3000×2880 |
| XSD3016 | Φ3000×1600 | 10 | 15/20 | 5.5 | 50-100 | 3845×3000×3080 |
| XSD3220 | Φ3000×2000 | 10 | 15/20 | 8.3 | 60-150 | 4150×3500×3300 |
| XSD3620 | Φ3000×2000 | 10 | 15/20 | 9.8 | 80-150 | 4500×3500×3700 |
