Top-notch calcination equipment for sale: boost your production quality

Our calcination equipment is engineered for superior performance and efficiency, and designed to meet the rigorous demands of various industrial applications.

This state-of-the-art machinery features advanced heating technology for consistent material processing and optimal output quality. Whether you’re in the mineral, chemical, or metallurgy industries, our calcination systems ensure precise temperature control and enhanced energy efficiency, reducing operational costs.

Built with durability in mind, our equipment guarantees long-lasting performance and minimal maintenance. With customizable designs to suit your specific needs, our calcination equipment is the ideal solution for achieving high-quality end products. Elevate your production capabilities with our reliable systems today!

Major Types For Sale:

Rotary kiln

Lime rotary kiln

Ceramsite sand rotary kiln

Magnesium rotary kiln

Titanium dioxide rotary kiln

Screw conveyor

Rotary cooler

Kaolin rotary kiln

Zinc oxide rotary kiln

Cement rotary kiln

Magnesite rotary kiln

Bauxite rotary kiln

Bucket elevator

Product Types

Major calcination equipment for sale in HengXing Machinery

13

Models for sale

Detailed Products

Check our quality calcination equipment

Rotary Kiln

arrowhead-right-circle

Yield:

0.9-42t/h

Weight:

18.5-125t

Kaolin rotary kiln

arrowhead-right-circle

Capacity:

1.9-42t/h

Weight:

78.2-278t

Lime rotary kiln

arrowhead-right-circle

Capacity:

1.9-42t/h

Weight:

47.5-278t

Zinc oxide rotary kiln

arrowhead-right-circle

Capacity:

180-2750t/h

Total weight:

149.61-633t

Ceramsite sand rotary kiln

arrowhead-right-circle

Capacity:

0.9-42t/h

Weight:

47.5-278t

Cement rotary kiln

arrowhead-right-circle

Capacity:

2-29.17t/h

Weight:

46.8-564.8t

Magnesium rotary kiln

arrowhead-right-circle

Capacity:

180-1300t/h

Speed ratio:

49.6-40

Magnesite rotary kiln

arrowhead-right-circle

Capacity:

2-20t/h

Power:

18.5-355kw

Titanium dioxide rotary kiln

arrowhead-right-circle

Capacity:

180-10000t/d

Bauxite rotary kiln

arrowhead-right-circle

Capacity:

0.9-42t/h

Weight:

47.5-278t

Screw conveyor

arrowhead-right-circle

Screw dia:

160-800mm

Rotate speed:

60-45r/min

Bucket elevator

arrowhead-right-circle

Capacity:

5.4-142t/h

Lifting weight:

<40m

Rotary cooler

arrowhead-right-circle

Capacity:

2-36t/h

Main power:

15-132kw

Application

Applications of rotary kiln

A rotary kiln is a key piece of building material equipment that can be classified based on the materials processed into three main types: cement kilns, metallurgy chemical kilns, and lime kilns.

Cement Kiln: Primarily used to produce cement clinker, cement kilns operate using either dry or wet methods. These methods enable the efficient conversion of raw materials into clinker, which is then ground to create cement.

Metallurgy Chemical Kiln: This type of kiln finds application in various metallurgical processes. It is commonly used for the magnetic roasting of low-grade iron ore, oxidizing roasting of chrome and nickel in steel plants, and baking high-alumina ore in refractory material facilities. Additionally, it is employed in aluminium production to baking chamotte and alumina, as well as in chemical plants for roasting chrome ore and chrome powder.

Lime Kiln: Lime kilns are utilized to produce active lime in steelworks and ferroalloy plants, as well as for the light roasting of dolomite. These kilns play a crucial role in the production of lime, which is essential for various industrial processes.

In summary, rotary kilns are indispensable equipment for various industries, each type serving specific material processing needs.

Working

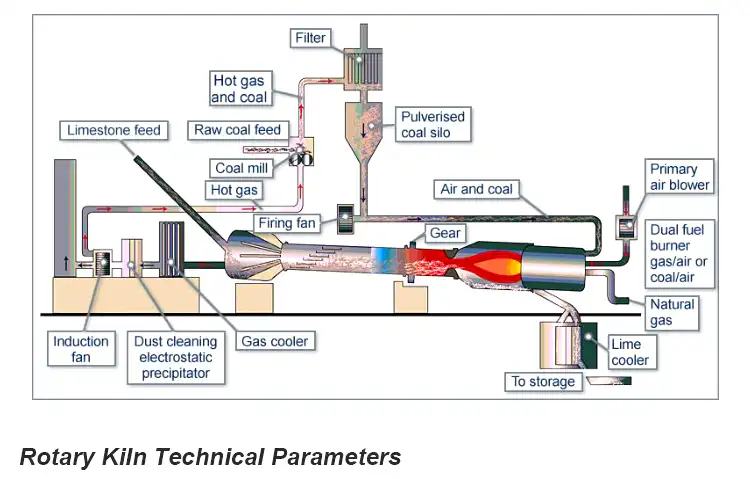

Working principle of rotary kiln

The rotary kiln is a cylindrical vessel slightly inclined from the horizontal and rotates slowly around its axis. Materials intended for processing are introduced at the upper end of the cylinder. As the kiln rotates, the materials gradually move towards the lower end, mixing and stirring as they go.

Hot gases flow through the kiln, typically moving in the opposite direction of the processing materials (counter-current). However, they can also move in the same direction (co-current) in some configurations. The hot gases may be produced in an external furnace or generated directly within the kiln by a flame fed from a burner pipe—also known as a firing pipe. This burner functions like a large-scale burner and can use various fuels, including gas, oil, or pulverized coal. This design allows for effective heat transfer and processing of materials, making the rotary kiln a vital component in many industrial applications.

Parameter

Specifications of rotary kiln

Hengxing rotary kiln is used for calcinating high-standard cement in cement factories, but is also widely used in metallurgy, construction and the chemical industry.

The rotary kiln produced by our factory has a strong structure, smooth operation, and high-quality products. Besides, we provide our customers with advanced and efficient shaft preheater and five-stage cyclone preheater.

Electrical power (kW)The size of the kilnSpecifications Model
(mm)
Speed
(r/min)
Electrical power (kw)Weight
(t)
Remarks
Diameter
(mm)
Length
(mm)
Gradient
(%)
φ1.4×331.43330.9-1.30.39-3.9618.547.5—-
φ1.6×361.63641.2-1.90.26-2.632252—-
φ1.8×451.84541.9-2.40.16-1.623078.2—-
φ1.9×391.93941.65-30.29-2.933077.59—-
φ2.0×4024032.5-40.23-2.2637119.1—-
φ2.2×452.2453.53.4-5.40.21-2.4445128.3—-
φ2.5×402.5403.59.0-10.50.44-2.4455149.61—-
φ2.5×502.55036.25-7.40.62-1.8655187.37—-
φ2.5×542.5543.56.9-8.50.48-1.4555196.29—-
φ2.7×422.7423.510.0-11.00.10-1.5255198.5—-
φ2.8×442.8443.512.5-13.50.437-2.1855201.58Suspension preheater kiln
φ3.0×453453.512.8-14.50.5-2.4775210.94—-
φ3.0×483483.525.6-29.30.6-3.48100237The kiln, kiln
φ3.0×603603.512.3-14.10.3-2100310—-
φ3.2×503.250440.5-420.6-3125278The kiln, kiln

Features

We focus on product details and guarantee quality

01

Smart Temperature Control

Our calcination equipment utilizes intelligent algorithms to monitor and adjust heating conditions in real-time, ensuring optimal processing and consistent product quality while minimizing energy consumption.

Get quote now

02

Modular Design

The innovative modular design allows for easy scalability and customization, enabling users to adapt the equipment to specific production needs and seamlessly integrate it into existing operations.

Get quote now

03

Advanced Emission Control

Equipped with cutting-edge filtration technology, our calcination systems significantly reduce harmful emissions, ensuring compliance with environmental standards while promoting a cleaner and safer working environment.

Get quote now

Exported Cases

Exported cases around the world

Rotary kiln in Malaysia

Our rotary kiln working in Malaysia

Rotary kiln in Dominican Republic

Our rotary kiln working in Dominican Republic

Rotary kiln in Jamaica

Our rotary kiln working in Jamaica

Rotary kiln in Venezuela

Our rotary kiln working in Venezuela

Rotary kiln in Saint Lucia

Our rotary kiln working in Saint Lucia

Rotary kiln in México

Our rotary kiln working in México
