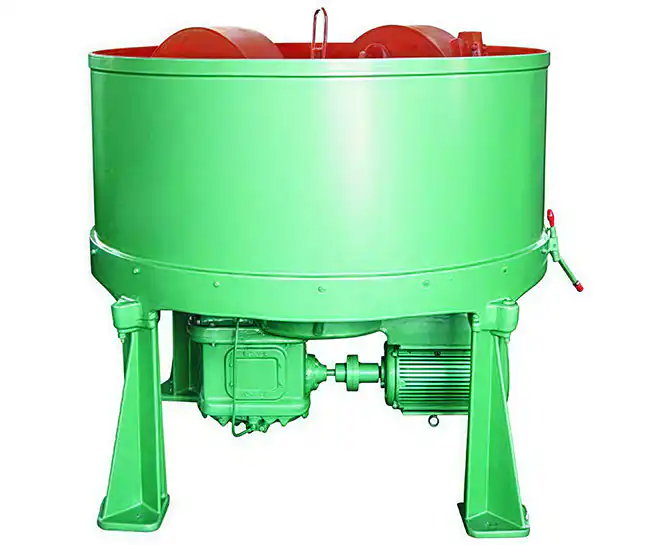

Sand mixer
Based on the advantages of foreign new wheel milling and mixing equipment, it is designed to combine wheel milling and mixing. It has a good mixing effect and remarkable energy-saving effect. It is suitable for mixing powder and granular materials.
Sand Mixing Amount (t/h): 1.5-20
Power (Kw): 4-37
Characteristics of sand mixer
1. High production efficiency, easy maintenance, low power consumption, high efficiency, and the whole machine can be hoisted.
2. Good mixing effect, high production efficiency, no lump formation, convenient operation and easy maintenance.
3. Good airtightness, no environmental pollution, and strong adaptability.
Sand mixer working principle
When working, the material is fed in from the middle of the grinding pan, and under the thrust of the scraper or its own centrifugal force, it enters under the roller to be crushed.
After being crushed many times, the particles that meet the required size will leak from the sieve holes around the grinding pan, and the coarse particles will return to the rollers and be crushed again.
The wheel mill mixer is suitable for crushing materials below medium hardness, such as silica and clay, or as a mixture of materials.
Specifications of sand mixer
| Model | Pan Dia (mm) | Sand Mixing Amount (t/h) | Add Material Amount (kg) | Power (kw) |
| S1110 | 1000 | 1.5-2.5 | 110 | 4 |
| S1111A | 1250 | 2-4 | 150 | 4 |
| S1112 | 1250 | 3-5 | 150 | 5.5 |
| S1113 | 1400 | 4-6 | 300 | 7.5 |
| S114C | 1800 | 7-8 | 500 | 15 |
| S114D | 1800 | 7-8 | 500 | 15 |
| S118 | 1800 | 15 | 650 | 22 |
| S1120 | 2000 | 20 | 900 | 37 |
