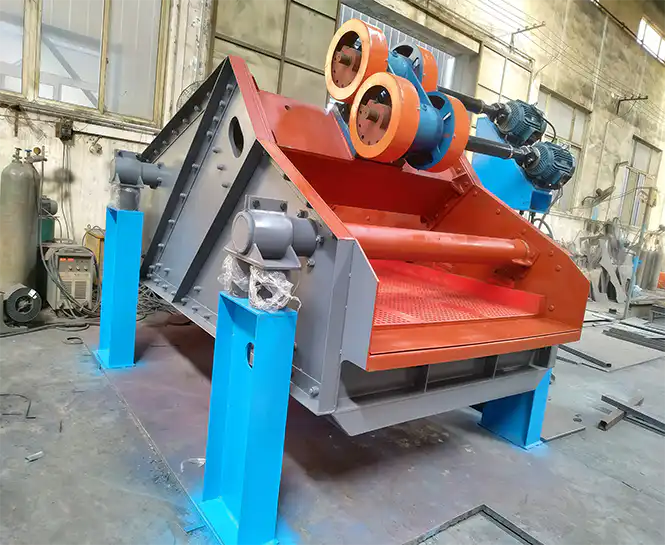

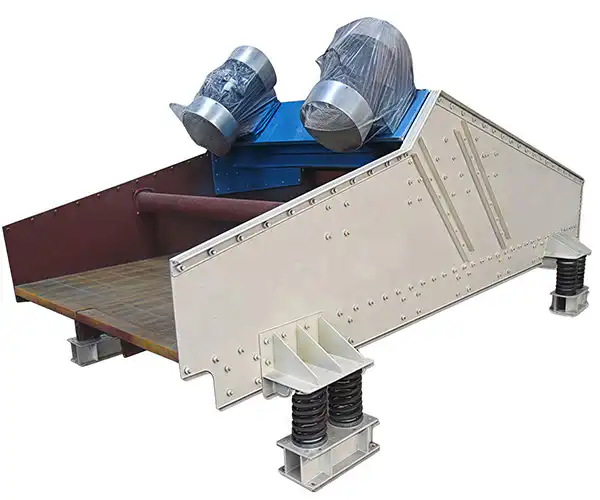

Dewatering screen
Dewatering Screen is suitable for material separation technology in new energy industries such as slurry dewatering, grading, desliming, mine screening, power plant screening and coal chemical industry.
Main effect of dewatering screen is dehydration,, desliming, remove media,Used for the washed-out sand of the Sand stone factory , Coal Sludge Recover of the coal separating plant, tailings discharging dryly of the concentrating mill and so on.
Features of dewatering screen
1. With a large capacity, high-efficiency dehydration, energy saving, longevity and other significant advantages.
2. Sidewall frame side panels using high-quality steel production, side panels and beams, exciter base with high-strength bolts or ring groove rivet connection, solid and reliable structure.
Dewatering screen working principle
The screen box relies on two of the same vibration motors to do the opposite direction from synchronous rotation, the bearing on the shock absorber of the whole linear vibration screening machine, material from the material into the screen box, fast forward, loose, screen, complete screening operation.
Specifications of dewatering screen
| Model | Screen Area(m²) | Power(kW) | Capacity(m³/h) | Feed Size(mm) | Weight(t) | Overall Dimension (L*W*H)(mm) |
| TS0820 | 1.5 | 2*0.75 | 5-10 | ≤10 | 0.8 | 2250*1140*1133 |
| TS1020 | 2 | 2*1.1 | 20-30 | ≤10 | 1.6 | 2250*1340*1185 |
| TS1225 | 3 | 2*2.2 | 50-80 | ≤10 | 2.1 | 2820*1590*1362 |
| TS1530 | 4.5 | 2*3 | 100-120 | ≤10 | 2.5 | 3320*1900*1351 |
| TS1840 | 7.2 | 2*4 | 150-200 | ≤10 | 3.5 | 4200*2441*1980 |
| TS1845 | 8.1 | 2*4 | 150-200 | ≤10 | 4.5 | 4800*2441*1980 |
| TS2445 | 10.8 | 2*7.5 | 200-250 | ≤10 | 6 | 4800*3100*2230 |
| Model | Screen Size (mm) | Mesh Size | Inclination (Degree) | Feed Size (mm) | Capacity (Tons/hour) | Motor (KW) | Speed (r/min) | Amplitude (mm) |
| TS-1230 | 1200*3000 | 5-500 mesh | 3-10° | <50 | 10-20 | 1.5KW*2 | 960 | 2-4 |
| TS-1236 | 1200*3600 | 5-500 mesh | 3-10° | <50 | 15-30 | 2.2KW*2 | 960 | 2-4 |
| TS-1530 | 1500*3000 | 5-500 mesh | 3-10° | <50 | 20-40 | 2.5KW*2 | 960 | 2-4 |
| TS-1545 | 1500*4500 | 5-500 mesh | 3-10° | <50 | 25-50 | 3KW*2 | 960 | 2-4 |
| TS-1850 | 1800*5000 | 5-500 mesh | 3-10° | <50 | 30-60 | 3.7KW*2 | 960 | 3-5 |
| TS-1860 | 1800*6000 | 5-500 mesh | 3-10° | <50 | 35-70 | 3.7KW*2 | 960 | 3-5 |
| TS-2160 | 2100*6000 | 5-500 mesh | 3-10° | <50 | 40-80 | 5.5KW*2 | 960 | 3-5 |
| TS-2460 | 2400*6000 | 5-500 mesh | 3-10° | <50 | 50-100 | 7.5KW*2 | 960 | 3-5 |
