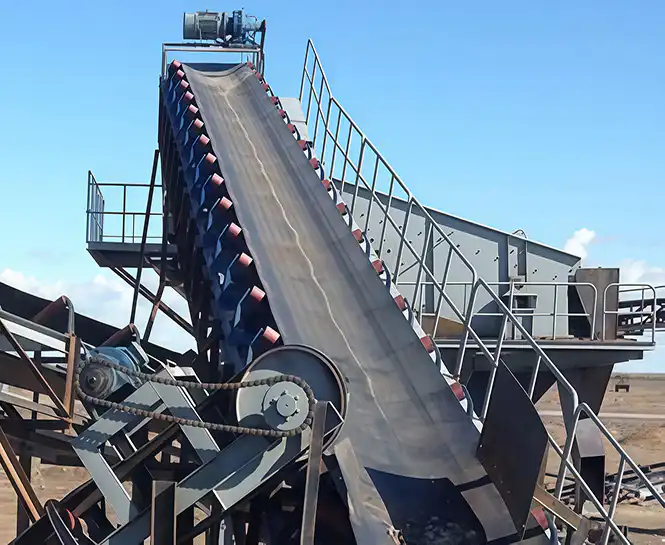

Belt conveyor
Belt conveyor is widely used formining, coal, chemical industry, building materials, metallurgy, electric power, light industry grain, port, shipping, etc.
The specific gravity of bulk materials is 0.5-2.5 t/m³ can be conveyed in the working environment where the temperature is during -15 degree to 140 degree.
The hot-sale types are including: Belt Width 400mm, 500mm, 650mm, 800mm, 1000mm, 1200mm, 1400mm and the capacity is including 30-60t/h, 40-80t/h, 80-120t/h, 120-200t/h,200-320t/h, 290-480t/h, 500-1200t/h. Our technical people can recommend the models for you, so tell us your requirement.
Mobile types conveyor belt has wheels, and can be moved.

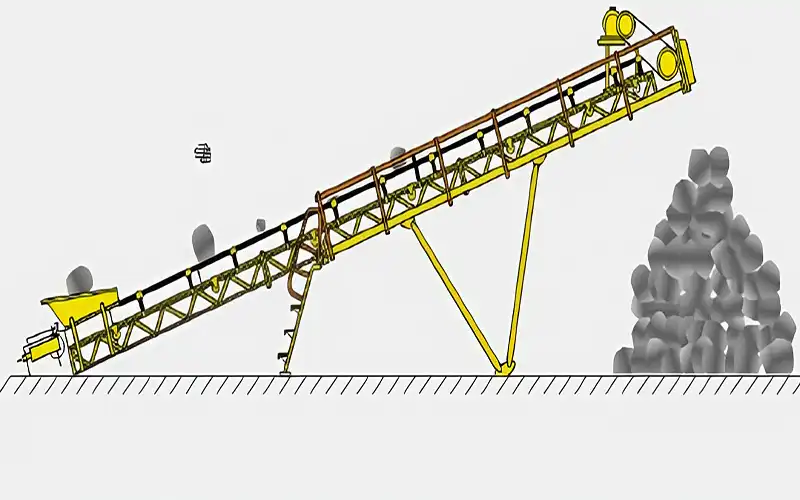

Belt conveyor working principle
The conveyor belt is mainly composed of the expansion cylinder on both ends and the closed belts tightly knotted on them. The revolving cylinder of the conveyor belt is called the driving cylinder, and the other cylinder which is mainly used for changing the moving direction of the belt is called the redirection cylinder.
The driving cylinder drives the device through the electromotor on the reducer, and the belt pulls relying on the friction of the driving cylinder and the conveyor belt. The driving cylinder is usually installed on the materials discharging side for the purpose of increasing the pulling force.
The materials are fed from the feeding end, and then they will fall on the revolving conveyor belt, relying on the friction force of the belt conveyor, the conveying materials are driven to the material discharging end for discharging.
Specifications of belt conveyor
| Belt Width(mm) | Conveying | Length(m) | Power(kw) | Conveying Speed(m/s) | Conveying Amount(t/h) |
| 500 | <=12 3 | 12-20 4-5.5 | 20-30 5.5-7.5 | 1.3-1.6 | 78-191 |
| 650 | <=12 4 | 12-20 5.5 | 20-30 7.5-11 | 1.3-1.6 | 131-323 |
| 800 | <=6 4 | 6-15 5.5 | 15-30 7.5-15 | 1.3-1.6 | 278-546 |
| 1000 | <=10 5.5 | 10-20 7.5-11 | 20-40 11-22 | 1.3-2.0 | 435-853 |
| 1200 | <=10 7.5 | 10-20 11 | 20-40 15-30 | 1.3-2.0 | 655-1284 |
| 1400 | <=10 11 | 10-20 18.5 | 20-40 22-37 | 1.3-2.0 | 893-1745 |
| 1600 | <=10 15 | 10-20 22 | 20-40 30-45 | 1.3-2.0 | 1069-2195 |
