Gold ore ball mill
In the beneficiation process of metal ore, the necessary equipment is the gold ore ball mill. The gold ore ball mill is a high-quality grinding equipment.
The gold ore processed by the ball mill has a higher appreciation space. The gold mine ball mill has high working efficiency and low operating cost. It belongs to the metal ore grinding equipment with a simple process and good grinding effect, so the market demand is very large.
Capacity: 0.65-90t/h
Discharge size: 0.075-0.4mm
Feeding size:
≤20mm
Application:
Special for gold ore powder grinding for gold ore beneficiation plant.

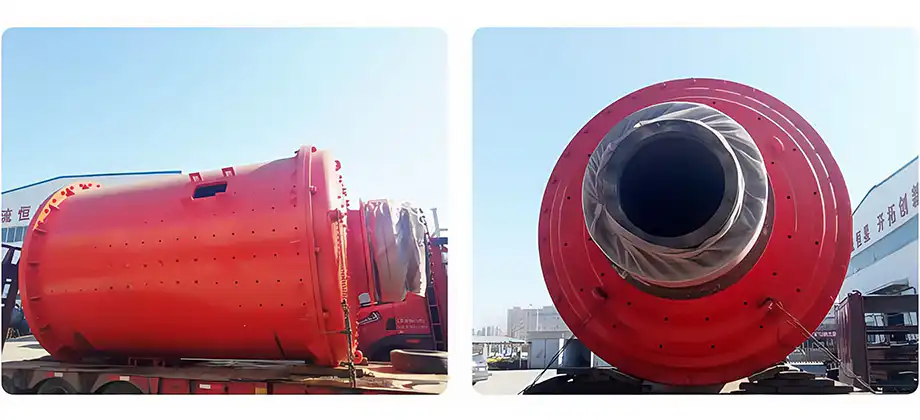

Gold ore ball mill structure & working principle
The structure design of the gold mine ball mill is relatively simple, mainly including the feeding system, the discharging system, the rotating part, the transmission part, etc., as well as important parts such as the cylinder, the bearing, the motor, the coupling, and the transmission gear ring. Wait. During the operation of the ball mill equipment, the grinding medium and metal mineral materials are used to grind the force generated by the rotation of the cylinder. The pulverized material is discharged from the discharge port to complete the grinding process.
Specifications of gold ore ball mill
| Model | Feeding size (mm) | Discharging size (mm) | Capacity (t) | Motor power (kW) | Total Weight (t) |
| φ 900×1800 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 5.8 |
| φ 900×3000 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 6.8 |
| φ 1200×2400 | ≤25 | 0.075-0.6 | 1.5-4.8 | 30 | 12 |
| φ 1200×3000 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 13.2 |
| φ 1200×4500 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.7 |
| φ 1500×3000 | ≤25 | 0.074-0.4 | 2-5 | 75 | 16.5 |
| φ 1500×4500 | ≤25 | 0.074-0.4 | 3-6 | 110 | 21 |
| φ 1500×5700 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
| φ 1830×3000 | ≤25 | 0.074-0.4 | 4-10 | 130 | 34.5 |
| φ 1830×4500 | ≤25 | 0.074-0.4 | 4.5-12 | 155 | 38 |
| φ 1830×6400 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 46 |
| φ 1830×7000 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 49 |
| φ 2100×3000 | ≤25 | 0.074-0.4 | 6.5-36 | 155 | 48 |
| φ 2100×4500 | ≤25 | 0.074-0.4 | 8-43 | 245 | 59 |
| φ 2100×7000 | ≤25 | 0.074-0.4 | 8-48 | 280 | 67.5 |
| φ 2200×4500 | ≤25 | 0.074-0.4 | 9-45 | 280 | 58 |
| φ 2200×6500 | ≤25 | 0.074-0.4 | 14-26 | 380 | 63 |
| φ 2200×7000 | ≤25 | 0.074-0.4 | 15-28 | 380 | 65.3 |
| φ 2200×7500 | ≤25 | 0.074-0.4 | 15-30 | 380 | 66.5 |
| φ 2400×3000 | ≤25 | 0.074-0.4 | 7-50 | 245 | 65 |
| φ 2400×4500 | ≤25 | 0.074-0.4 | 8.5-60 | 320 | 70 |
| φ 2700×4000 | ≤25 | 0.074-0.4 | 12-80 | 400 | 92 |
| φ 2700×4500 | ≤25 | 0.074-0.4 | 12-90 | 430 | 102 |
| φ 3200×4500 | ≤25 | 0.074-0.4 | Determined by the technological process | 600 | 137 |
| φ 3600×4500 | ≤25 | 0.074-0.4 | Determined by the technological process | 850 | 158 |
| φ3600×6000 | ≤25 | 0.074-0.4 | Determined by the technological process | 1250 | 175 |
