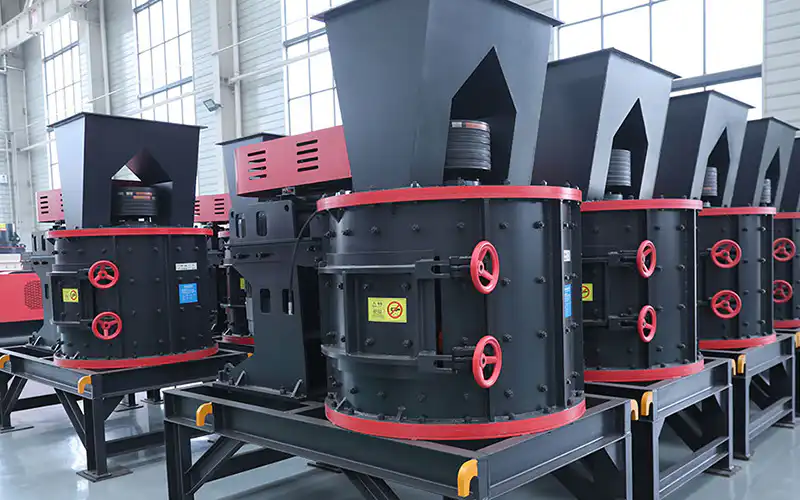

Vertical compound crusher
Feed size: 50-100mm
Production capacity: 5-100t/h
Discharge size: 0-5mm
Applicable materials: river pebble, granite, basalt, iron ore, limestone, quartz stone, construction waste, etc.
Application range: widely used in mineral processing, coal, building materials, chemicals, refractory materials, metallurgy, cement, glass, ceramics, electric power and other industries.
Vertical compound crusher application
This vertical compound crusher is widely used in all kinds of ores, cement, refractories, alumina clinker, glass raw materials and high hard, hard materials, fine in the field. In the mechanism building sand, stone and breaking of metallurgical slag is more widespread use, compared with other types of crusher production with high efficiency.
Vertical compound crusher advantages

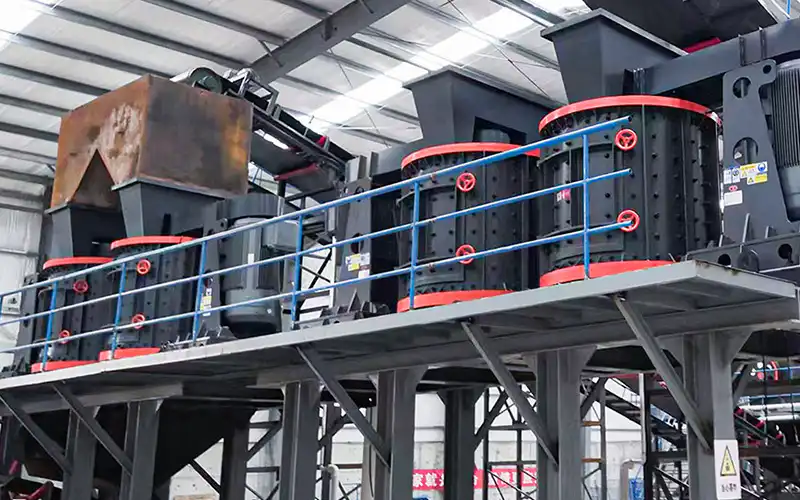

Materials fall into the high-speed rotation impeller from the above of machine, under the action of high-speed centrifugal force, have high-speed impact with another umbrella form materials which flow around the impeller, after they attack each other, then discharged from the bottom, it forms close-circuit and with many times circulation, it can achieve the required product size by screening equipment controlling.
Vertical compound crusher working principle
1. Simple and reasonable structure, lower running costs, smaller wear.
2. Large crushing rate, energy-saving.
3. Has a fine crushing, coarse grinding function.
4. The impact of materials’ moisture content is small, up to about 8%.
5. Job noise below 75 decibels (db level), less dust pollution.
6. Fit for crushing hard and semi-hard materials.
7. Products into cubes, larger packing density, smaller iron pollution.
8. The wear of the impeller liner is small, repairment is easy.
Specifications of vertical compound crusher
| Model | Rotor diameter(mm) | Cylinder height(mm) | Main shaft rotation speed(r/min) | Feeding size(mm) | Discharging size(mm) | Capacity(t/h) | Motor power(kw) | Dimension(LxWxH mm) | Weight(t) |
| 800 | 650 | 800 | 1350 | 50 | 0-5 | 5-15 | 30 | 2200*860*1980 | 2.3 |
| 1000 | 800 | 850 | 970 | 70 | 0-5 | 10-30 | 55 | 2700*1160*2000 | 4.5 |
| 1250 | 1000 | 850 | 740 | 100 | 0-5 | 20-60 | 75 | 2800*1400*2730 | 9.7 |
| 1500 | 1250 | 1000 | 650 | 100 | 0-5 | 30-80 | 110 | 3350*2100*2800 | 18.1 |
| 1750 | 1560 | 1410 | 600 | 100 | 0-5 | 40-100 | 132 | 3100*1900*2300 | 26.6 |
