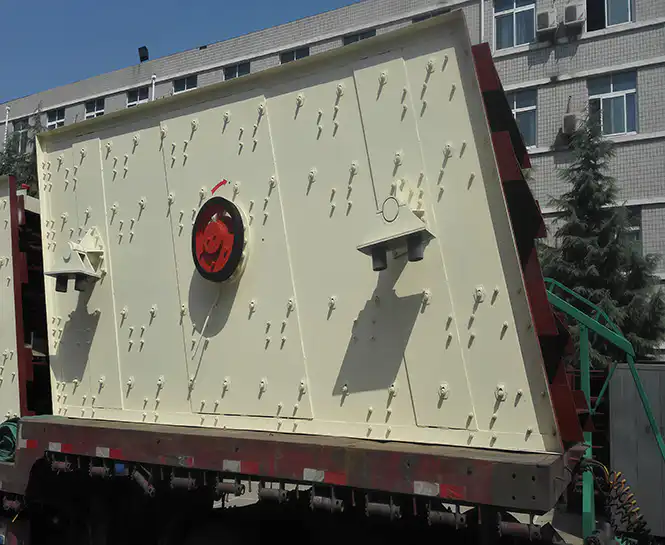

Circular vibrating screen
YK Series circular vibrating screen can be used to separate minerals into various sizes for further processing in a crusher.
It incorporates a vibrator, eccentric block, mesh, spring, triangular belt and motor and is used for discharging bulky goods, sand, gravel, coal and coke from hopper to crusher.
We can design and supply all ranges of vibrating screens according to the capacity and requirement
Power(kW): 5.5-45
Capacity(m3/h): 20-900
Circular vibrating screen working principle

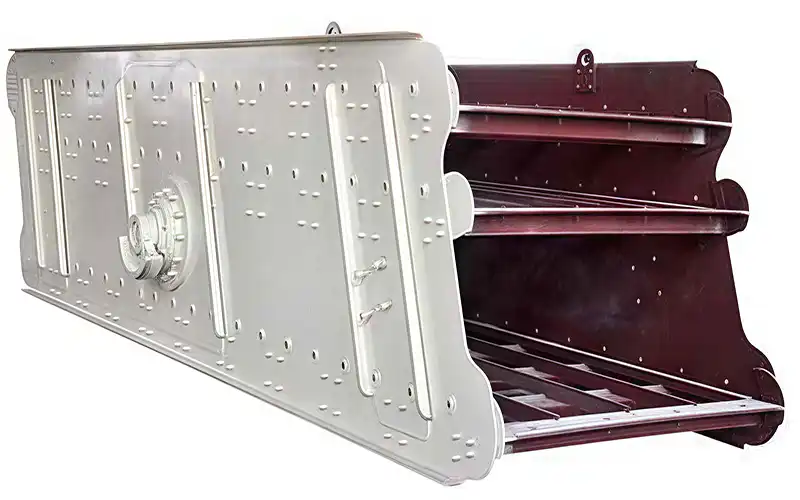

A circular vibrating screen mainly consists of the eccentric block vibrator, screen box, motor, and supportive device.
Through the flexible coupling, the motor drives the eccentric block of the vibrator to rotate at high speed, generating the centrifugal force, and then causing the screen box to do circular movement by amplitude.
After that, the materials in the slope screen surface will be cast continuously by the force generated from the screen box, then realize the purpose of classifying.
Circular vibrating screen characteristic
1. High screening efficiency and productivity with a strong vibration of the sieve box.
2. Short maintenance cycle with simple structure and easy replacement of screen surface.
3. Low noise and long life with spring to reduce vibration.
Specifications of Circular vibrating screen
| Model | Screen Deck | Installation Slope(°) | Deck Size (m2) | Vibrating Frequency (r/min) | Double Amplitude (mm) | Capacity (m3/h) | Motor Power (kw) | Overall Dimensions (L×W×H) (mm) | Weight (kg) |
| 2YK1224 | 2 | 15 | 2.88 | 970 | 6-8 | 20-120 | 5.5 | 2673×2382×2027 | 1750 |
| YK1235 | 1 | 15 | 4.2 | 970 | 6-8 | 20-150 | 5.5 | 3710×2464×1450 | 1729 |
| 2YK1235 | 2 | 15 | 4.2 | 970 | 6-8 | 20-150 | 7.5 | 3705×2393×2339 | 2476 |
| 3YK1235 | 3 | 15 | 4.2 | 970 | 6-8 | 20-150 | 7.5 | 3621×2521×2581 | 3158 |
| 4YK1235 | 4 | 15 | 4.2 | 970 | 6-8 | 20-150 | 11 | 3510×2521×2830 | 4160 |
| YK1545 | 1 | 17.5 | 6.75 | 970 | 6-8 | 20-150 | 11 | 4904×3044×2179 | 3319 |
| 2YK1545 | 2 | 17.5 | 6.75 | 970 | 6-8 | 20-150 | 15 | 5042×3090×3165 | 5308 |
| 3YK1545 | 3 | 17.5 | 6.75 | 970 | 6-8 | 20-150 | 15 | 4972×3090×3395 | 5915 |
| 4YK1545 | 4 | 17.5 | 6.75 | 970 | 6-8 | 20-150 | 18.5 | 4915×3155×3804 | 7260 |
| YK1548 | 1 | 17.5 | 7.2 | 970 | 6-8 | 20-150 | 11 | 5190×3044×2186 | 3319 |
| 2YK1548 | 2 | 17.5 | 7.2 | 970 | 6-8 | 20-150 | 15 | 5265×3140×3208 | 5284 |
| 3YK1548 | 3 | 17.5 | 7.2 | 970 | 6-8 | 20-150 | 15 | 5200×3090×3440 | 6186 |
| 4YK1548 | 4 | 17.5 | 7.2 | 970 | 6-8 | 20-150 | 18.5 | 5200×3155×3849 | 7284 |
| YK1860 | 1 | 20 | 10.8 | 970 | 6-8 | 32-350 | 15 | 6302×3365×2992 | 4651 |
| 2YK1860 | 2 | 20 | 10.8 | 970 | 6-8 | 32-350 | 18.5 | 6020×3455×3756 | 6195 |
| 3YK1860 | 3 | 20 | 10.8 | 970 | 6-8 | 32-350 | 18.5 | 6020×3455×4180 | 7613 |
| 4YK1860 | 4 | 20 | 10.8 | 970 | 6-8 | 32-350 | 22 | 5963×3505×4463 | 8650 |
| YK2160 | 1 | 20 | 12.6 | 970 | 6-8 | 66-720 | 18.5 | 6302×3730×2992 | 4917 |
| 2YK2160 | 2 | 20 | 12.6 | 970 | 6-8 | 66-720 | 22 | 5966×3958×3975 | 6856 |
| 3YK2160 | 3 | 20 | 12.6 | 970 | 6-8 | 66-720 | 30 | 5966×3958×4400 | 9112 |
| 4YK2160 | 4 | 20 | 12.6 | 970 | 6-8 | 66-720 | 30 | 5966×3958×4780 | 11405 |
| YK2460 | 1 | 20 | 14.4 | 970 | 6-8 | 75-750 | 18.5 | 6302×4155×2992 | 5243 |
| 2YK2460 | 2 | 20 | 14.4 | 970 | 6-8 | 75-750 | 30 | 6027×4308×3975 | 8503 |
| 3YK2460 | 3 | 20 | 14.4 | 970 | 6-8 | 75-750 | 30 | 6027×4308×4400 | 10411 |
| 4YK2460 | 4 | 20 | 14.4 | 970 | 6-8 | 75-750 | 30 | 5966×4308×4780 | 12068 |
| 2YK2475 | 2 | 20 | 18 | 970 | 6-8 | 120-900 | 30 | 7812×4308×4642 | 10709 |
| 3YK2475 | 3 | 20 | 18 | 970 | 6-8 | 120-900 | 37 | 7718×4393×5033 | 13400 |
| 4YK2475 | 4 | 20 | 18 | 970 | 6-8 | 120-900 | 45 | 7718×4494×5361 | 15500 |
| YK3060 | 1 | 20 | 18 | 970 | 6-8 | 200-900 | 30 | 6302×4943×3108 | 14052 |
| 2YK3060 | 2 | 20 | 18 | 970 | 6-8 | 200-900 | 37 | 6207×4943×3985 | 17185 |
| 3YK3060 | 3 | 20 | 18 | 970 | 6-8 | 200-900 | 45 | 6207×4943×4485 | 19200 |
| 4YK3060 | 4 | 20 | 18 | 970 | 6-8 | 200-900 | 45 | 6207×4943×4785 | 21080 |
