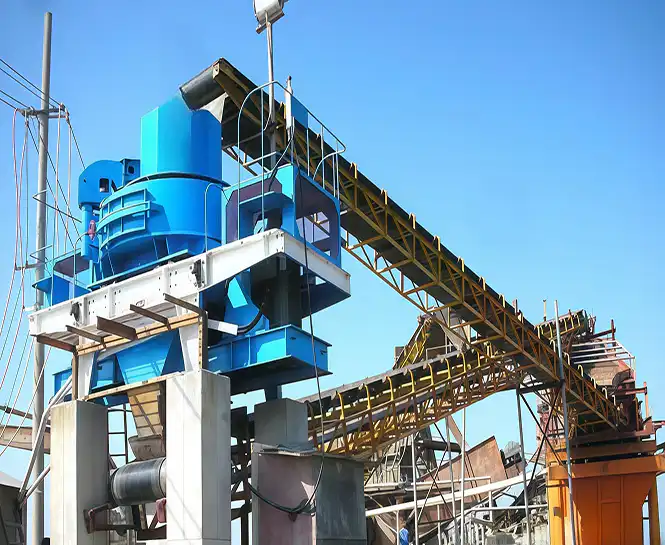

Sand making production line
The artificial sand production line equipment is composed of a jaw crusher, a VSI crusher (sand-making machine), a vibrating screen (circular vibrating screen), a sand washing machine, and a belt conveyor. According to different process requirements, use the appropriate type of equipment for configuration to give full play to its performance.

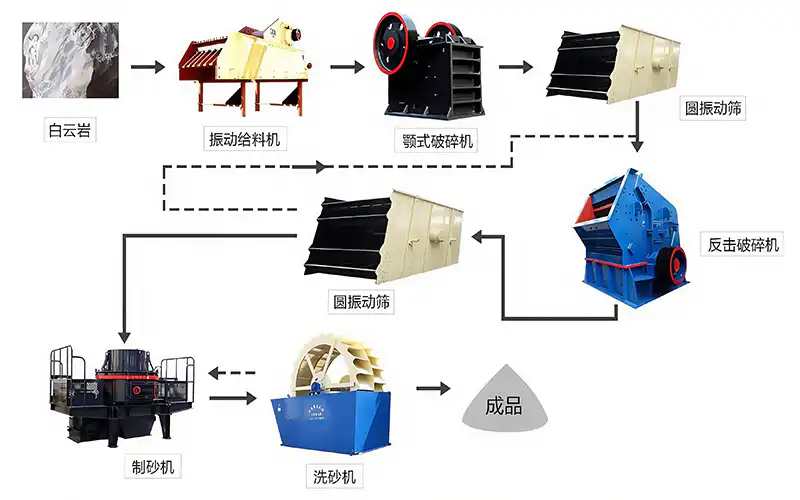

Sand making production line process
First, the stone material is initially crushed by the coarse crusher (coarse jaw crusher).
Then, the produced coarse material is conveyed by the belt conveyor to the fine crusher (fine crusher jaw crusher) for further crushing, and the finely crushed stone is vibrated two kinds of stones are sieved out by the sieve, and the stones that meet the feeding granularity of the sand making equipment are placed in machine-made sand, and the other part of the material is returned and then broken.
Part of the gravel of the sanding equipment is made into sand, which is cleaned by a sand washing machine (optional) to make finished sand, and the other part of the sanding machine is broken again to produce various sand materials that meet the requirements.
Sand making production line characteristics
1. Fully automated operation process, higher production efficiency, more optimized work efficiency, high degree of automation, large crushing ratio, large processing capacity, the crushed product is cube-shaped, with low needle flake content, no internal cracks, and pressure The high strength conforms to the national construction sand standard.
2. A wider range of applications. Successfully applied to the crushing and processing of limestone, basalt, granite, pebbles and other rocks. The quality of the finished product after crushing can reach the GB14685-2001 standard, providing high-grade highways, railways, water conservancy, concrete mixing plants and other industries-qualified aggregate.
3. The equipment of the sand and gravel production line requires almost no manual operation except for startup and shutdown and routine maintenance. Its production efficiency is high, operating costs are low, the output is large, and the profit is high. The finished stone has uniform particle size and good shape, which meets the national high-speed material requirements.
4. In the design of the process flow of the sand and gravel equipment, due to the reasonable matching of the crushing equipment at all levels and the rigorous cross-space layout, it has a small area, high investment and economic benefits, good quality of the gravel material, and stone powder output rate. The low-level feature is that it is equipped with an advanced electronic control operating system to ensure the smooth discharge of the entire process, reliable operation, convenient operation and energy saving.
