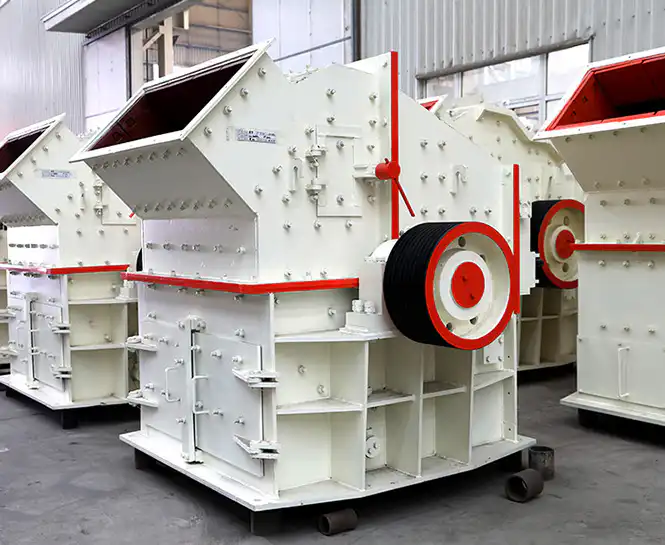

High efficient impact fine crusher
Fine crusher feeding size: <190mm
Applicable materials: granite, basalt, limestone, river pebble, cement clinker, quartz stone, iron ore, bauxite and other minerals.

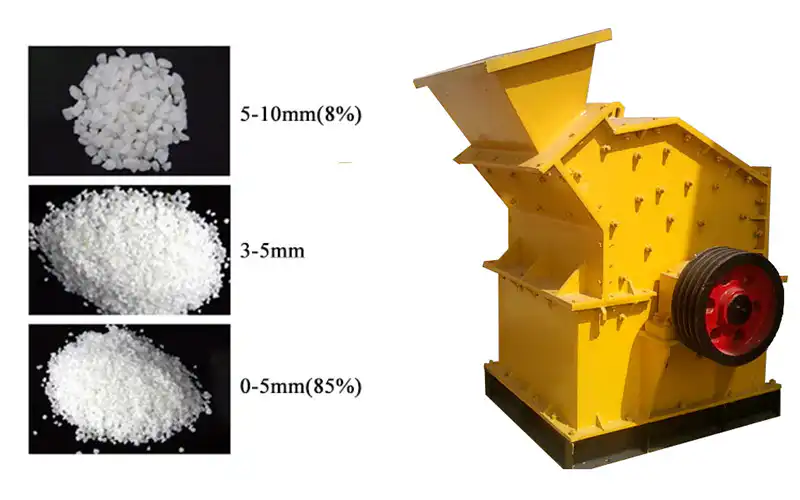

High efficient impact fine crusher features
1. Feeding size: 120mm-200mm
2. More than 85% of output below 5mm
Even particle size small, higher output, more durable plate hammer
4. lower motor power, donโt need thirdly crushing
5. Simple structure, easy maintenance and stable running

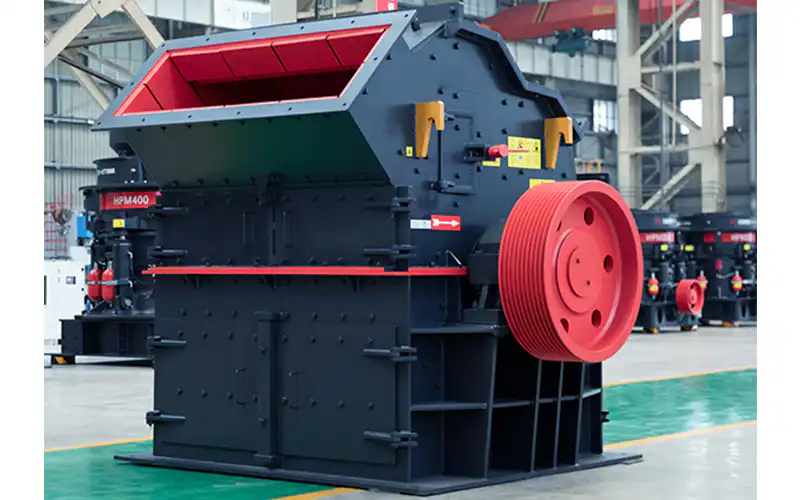

High efficient impact fine crusher working principle
When the fine crusher is working, materials are crushed primarily in the first crushing chamber by the high speed moving rotor against the hammer, and then enter the secondary chamber for fine crushing, at last, the final materials are discharged.
Specifications of high efficient impact fine crusher
| PXJfine crusher | Rotor diameter รธรwidth (mm) | |||||||
| Model | 800ร400 | 800ร600 | 800ร800 | 1010ร1010 | 1200 ร1200 | 1400 ร1400 | 1600 ร1600 | 1800 ร1800 |
| 400ร185 | 500ร250 | 550ร300 | 1000ร350 | 1200 ร450 | 1500 ร500 | 1600 ร550 | 1800 ร800 | |
| Feed size (mm) | ๏ผ120 | ๏ผ180 | ๏ผ180 | ๏ผ180 | ๏ผ180 | ๏ผ190 | ๏ผ190 | ๏ผ190 |
| Outpour size (mm) | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 |
| Output grid gap adjustable size (mm) | 5-50 | 5-50 | 5-50 | 5-50 | 5-50 | 5-50 | 5-50 | 5-50 |
| Cement clinker ๏ผt/h๏ผ | 10-30 | 10-40 | 20-45 | 25-55 | 35-90 | 50-150 | 85-210 | 125-270 |
| Limestone ๏ผt/h๏ผ | 18-45 | 23-55 | 28-65 | 35-75 | 45-110 | 50-150 | 95-260 | 140-310 |
| power๏ผkw๏ผ | 4P 37KW | 4P 45KW | 4P 45KW | 4P 55KW | 6P 110KW | 6P 160KW | 4P 250KW | 4P 315KW |
| Weight | 3.9 | 4.5 | 6 | 10.5 | 14.4 | 22 | 35 | 49.7 |
