Wet pan mill
The gold wet pan mill is mainly applied for grinding gold, silver, lead, zinc, iron, molybdenum, copper, antimony and so on.
Process ability: 4-0.3t/h
Speed: 20-22 ~ 17-19r/min
Input size:
Less than 30mm

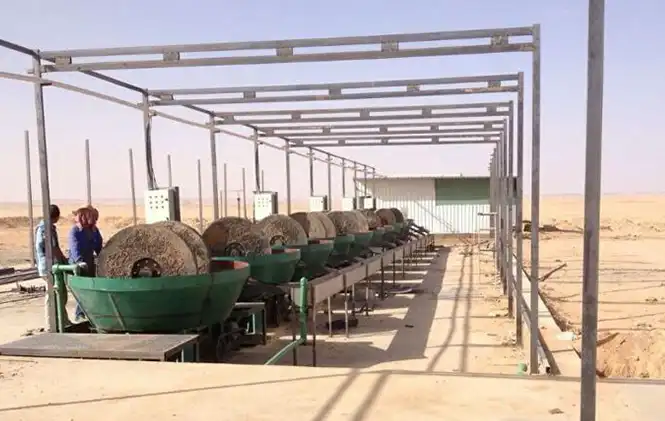

Wet pan mill features
1. Small investment, high output.
2. Easy installation and maintenance.
3. Good efficiency.
4. The roller is wearproof.
Wet pan mill working principle

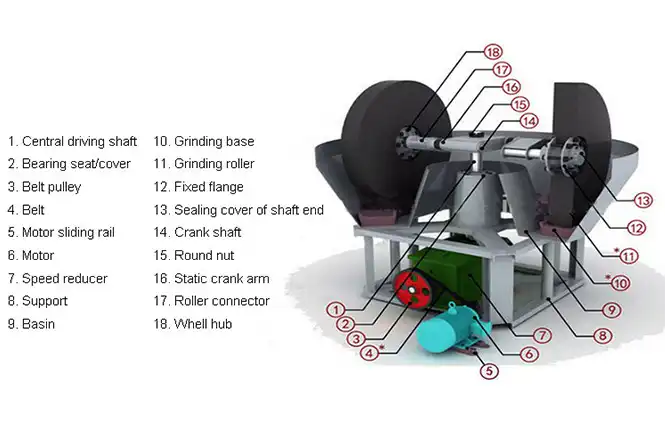

This equipment adopts the working mode of wheel-driven grinding: firstly, the motor drives the power to the reducer, and under the drive of the reducer, the torque is transferred to the horizontal shaft above through the big vertical shaft, and then the torque is transferred to the roller through the pull rod installed on both ends of the horizontal shaft so that the roller generates driving force and rotates counterclockwise along the horizontal axis.
The roller can rotate around the wet roller’s big vertical axis and around the roller’s centre axis. The added mineral material is crushed thoroughly after repeated extrusion, kneading and grinding by the extrusion pressure brought by the weight of the roller itself and the huge friction generated by the roller during its revolution and rotation.
Specifications of wet pan mill
| Model | Specification | Input size(mm) | Process ability(t/h) | Speed(r/min) | Motor(kw) | Weight(t) |
| 1600 | 1600×400×±20 | Less than 30mm | 4 | 20-22 | 6-30 | 16 |
| 1500A | 1500×400×±20 | 3 | 20-22 | 6-22 | 15 | |
| 1500B | 1500×350×±20 | 2.5-3 | 20-22 | 6-22 | 14 | |
| 1500C | 1500×300×±20 | 2-2.5 | 20-22 | 6-22 | 12.5 | |
| 1400 | 1400×250×±20 | 1.5-2 | 16-18 | 6-18.5 | 9.5 | |
| 1300 | 1300×250×±20 | 1.5 | 21-23 | 6-15 | 7.8 | |
| 1200A | 1200×220×±20 | 0.9-1.2 | 16-18 | 4-7.5 | 6.0 | |
| 1200B | 1200×200×±20 | 0.8-1 | 21-23 | 4-7.5 | 5.8 | |
| 1100 | 1100×200×±10 | 0.6-0.8 | 16-18 | 4-5.5 | 5.5 | |
| 1000 | 1000×200×±10 | 0.5 | 21-23 | 4-5.5 | 4.5 | |
| 900 | 900×150×±10 | 0.3 | 17-19 | 3 | 3.2 |
