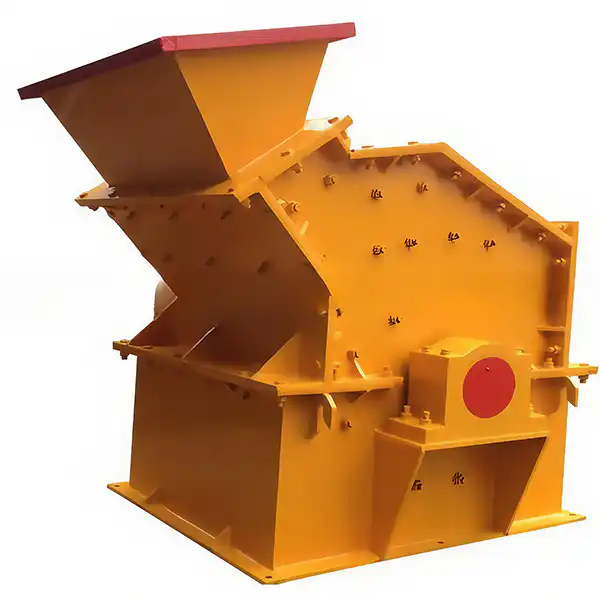

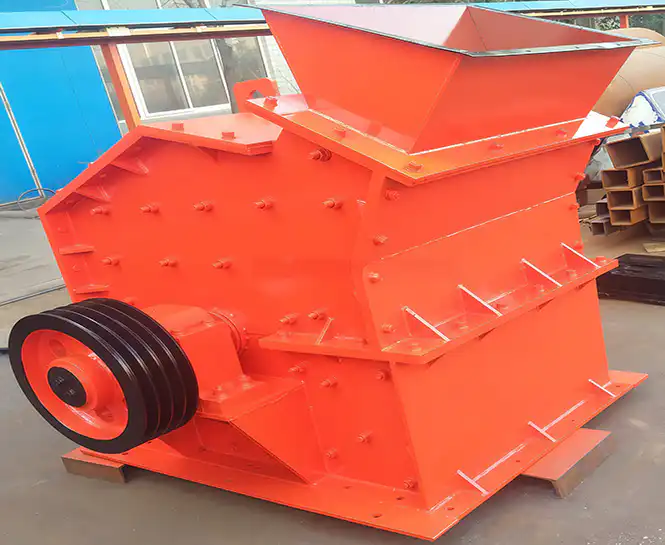

Machine de fabrication de sable fin pour concasseur
Feeding particle size: 120-190mm
Capacitรฉ: 5-270t/h
Discharge size: 5-10mm
Applicable materials: river pebble, granite, basalt, limestone, cement clinker, quartz stone, iron ore, bauxite, etc.
Scope of application: suitable for high-grade highways, railways, water conservancy, airports, construction, cement, refractories, metallurgy and other industries.
Fine crusher sand making machine application
Fine crushing sand-making machine, also known as fine crusher, third generation fine crushing machine, etc. The machine has a wide range of uses and its performance has reached the level.
It is currently an effective, practical and reliable stone-crushing machine. It is especially suitable for making abrasives, refractory materials, cement, quartz sand, steel sand, slag powder, copper ore, and iron ore. Fine crushing and medium crushing of various hard and brittle materials such as stone, gold ore, concrete aggregate, asphalt aggregate, etc.
It is a kind of high-yield and energy-saving crushed stone sand-making equipment, which saves 50% energy than traditional fine crushers, and is currently more advanced Crusher equipment.
Fine crusher sand making machine characteristic
The fine crushing sand-making machine has stable and reliable operation performance, simplified process, simple structure and convenient maintenance. Large production capacity and long service life of the hammer head.
The investment in the fine sand-making machine is 35%-50% lower than that of the traditional process equipment of the same scale, and the output efficiency is 35%-50% higher than that of the traditional process equipment of the same scale.
The long-term operation and maintenance cost is also 35%-50% lower than that of traditional process equipment of the same scale. It is widely used in machine-made sand and gravel, high-grade roads, railways, water conservancy, airports, construction, cement, refractories, metallurgy and other industries to produce high-quality stones.

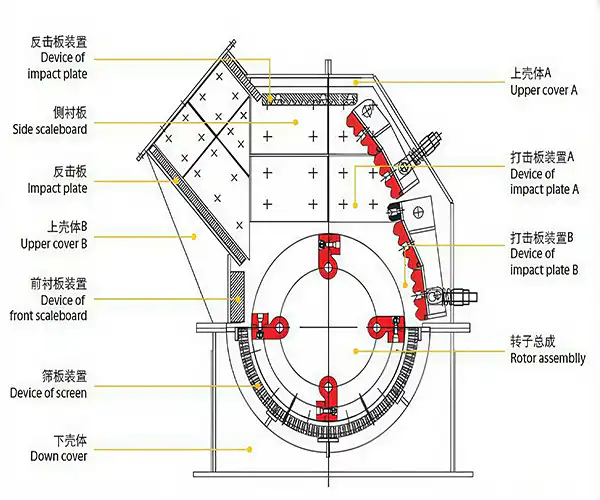

Fine crusher sand making machine working principle
This machine is a continuous operation equipment. During operation, driven by the motor, the rotor rotates at a high speed. The material enters the first crushing chamber and is crushed. The material port is discharged.
Specifications of fine crusher sand making machine
| PXJfine Crusher | Rotor Diameter ย รธรWidth (mm) | |||||||
| Model | 800ร400 | 800ร600 | 800ร800 | 1010ร1010 | 1200 ร1200 | 1400 ร1400 | 1600 ร1600 | 1800 ร1800 |
| 400ร185 | 500ร250 | 550ร300 | 1000ร350 | 1200 ร450 | 1500 ร500 | 1600 ร550 | 1800 ร800 | |
| Feed Size (mm) | ๏ผ120 | ๏ผ180 | ๏ผ180 | ๏ผ180 | ๏ผ180 | ๏ผ190 | ๏ผ190 | ๏ผ190 |
| Outpour Size (mm) | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 |
| Output Grid Gap Adjustable Size (mm) | 5-50 | 5-50 | 5-50 | 5-50 | 5-50 | 5-50 | 5-50 | 5-50 |
| Cement Clinker ๏ผt/h๏ผ | 10-30 | 10-40 | 20-45 | 25-55 | 35-90 | 50-150 | 85-210 | 125-270 |
| Limestone ๏ผt/h๏ผ | 18-45 | 23-55 | 28-65 | 35-75 | 45-110 | 50-150 | 95-260 | 140-310 |
| Power๏ผkw๏ผ | 4P 37KW | 4P 45KW | 4P 45KW | 4P 55KW | 6P 110KW | 6P 160KW | 4P 250KW | 4P 315KW |
| Poids | 3.9 | 4.5 | 6 | 10.5 | 14.4 | 22 | 35 | 49.7 |
